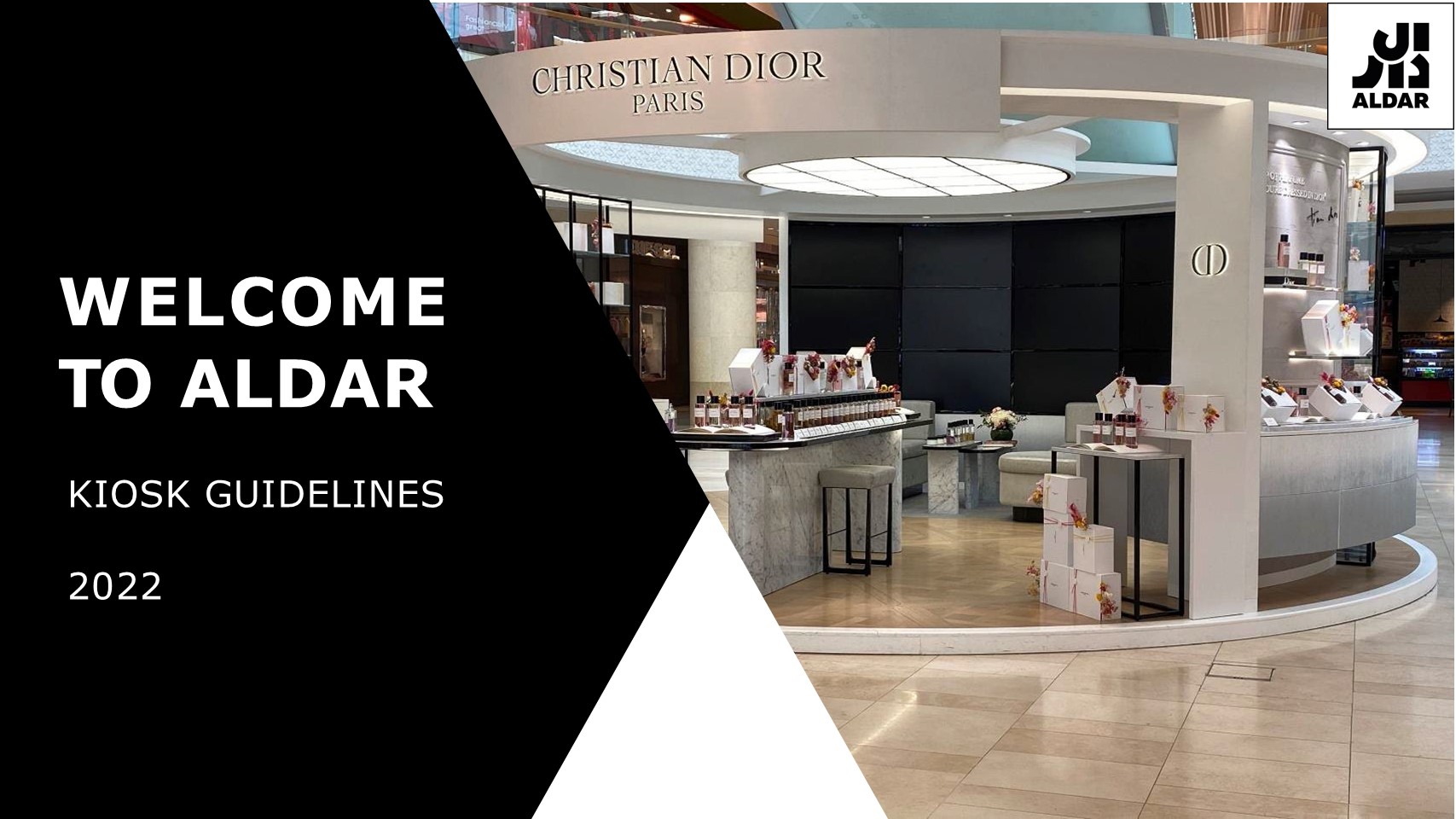

Yas Mall Kiosk Design Guidelines 2022: A Complete Overview for Retailers
Welcome to the definitive guide for designing and implementing retail kiosks at Yas Mall, Dubai. Whether you’re a new tenant or looking to refresh your existing space, this article breaks down the essential Aldar kiosk guidelines to help you create a compliant, attractive, and high-performing retail unit.

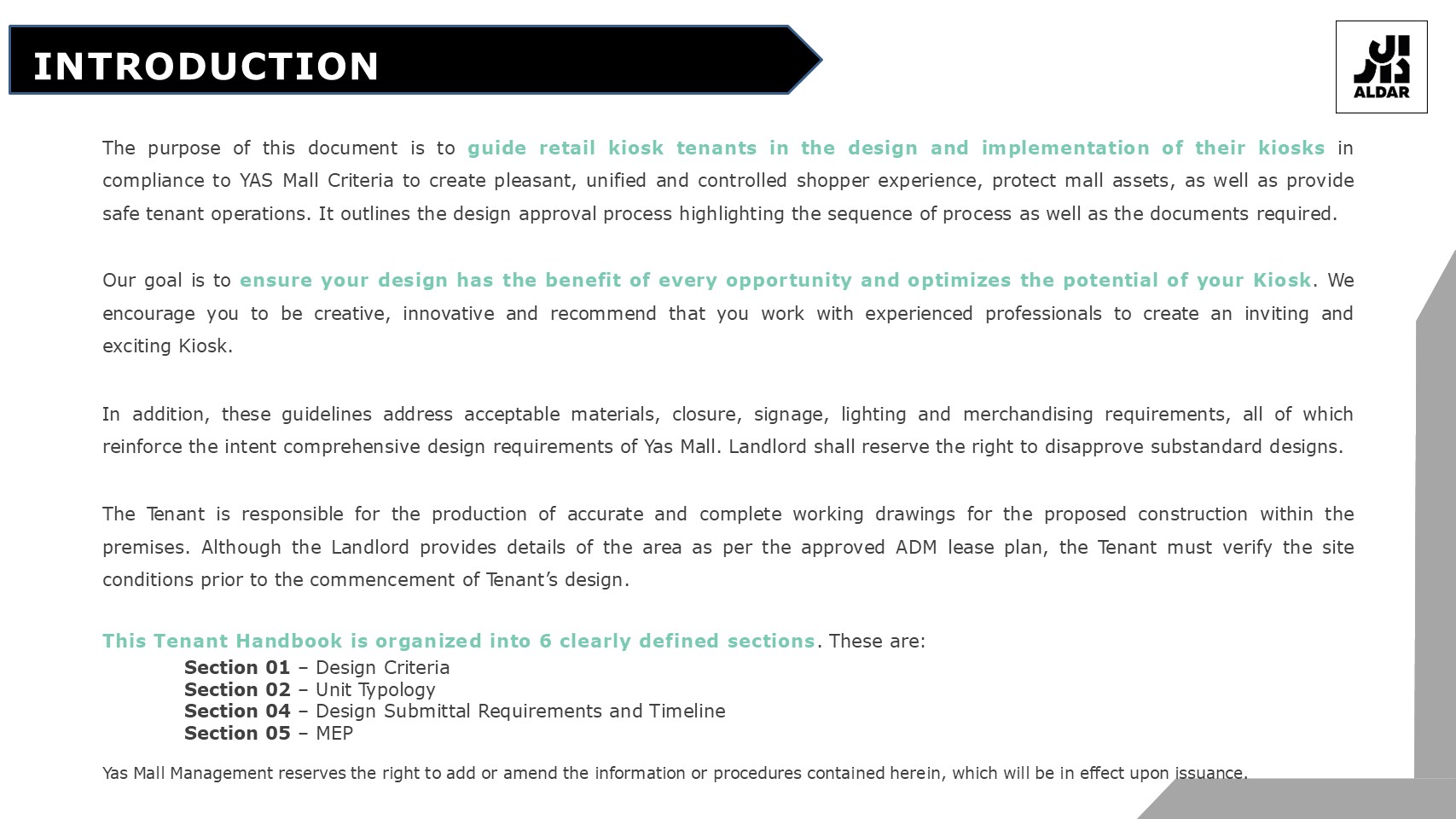

Introduction to Yas Mall Kiosk Guidelines
Yas Mall is committed to delivering a unified and elevated shopping experience. The kiosk guidelines are designed to ensure that all retail units align with the mall’s aesthetic, safety, and operational standards. Tenants are encouraged to be innovative while adhering to the detailed criteria outlined in the Aldar Kiosk Handbook.
Key Responsibilities
Tenant Responsibilities
♦Develop creative and appropriate kiosk designs
♦Submit all design documents as per the landlord’s process
♦Verify site conditions before starting design
♦Produce accurate working drawings
Landlord Responsibilities
♦ Provide the leased area as per the approved plan
♦Offer a target schedule for design, fabrication, and installation
♦Conduct final inspections and approve kiosk operations
Design Criteria Overview
General Requirements
♦No part of the kiosk may extend beyond the leased area
♦No solid canopies or overhead structures are allowed
♦Only one vertical pylon is permitted
♦High-quality fabrication with concealed fittings is mandatory
Kiosk Design Intent
♦Design must complement the mall’s overall theme
♦Modular and self-supporting construction only
♦No exposed wiring or hardware
♦POS systems must be fully integrated

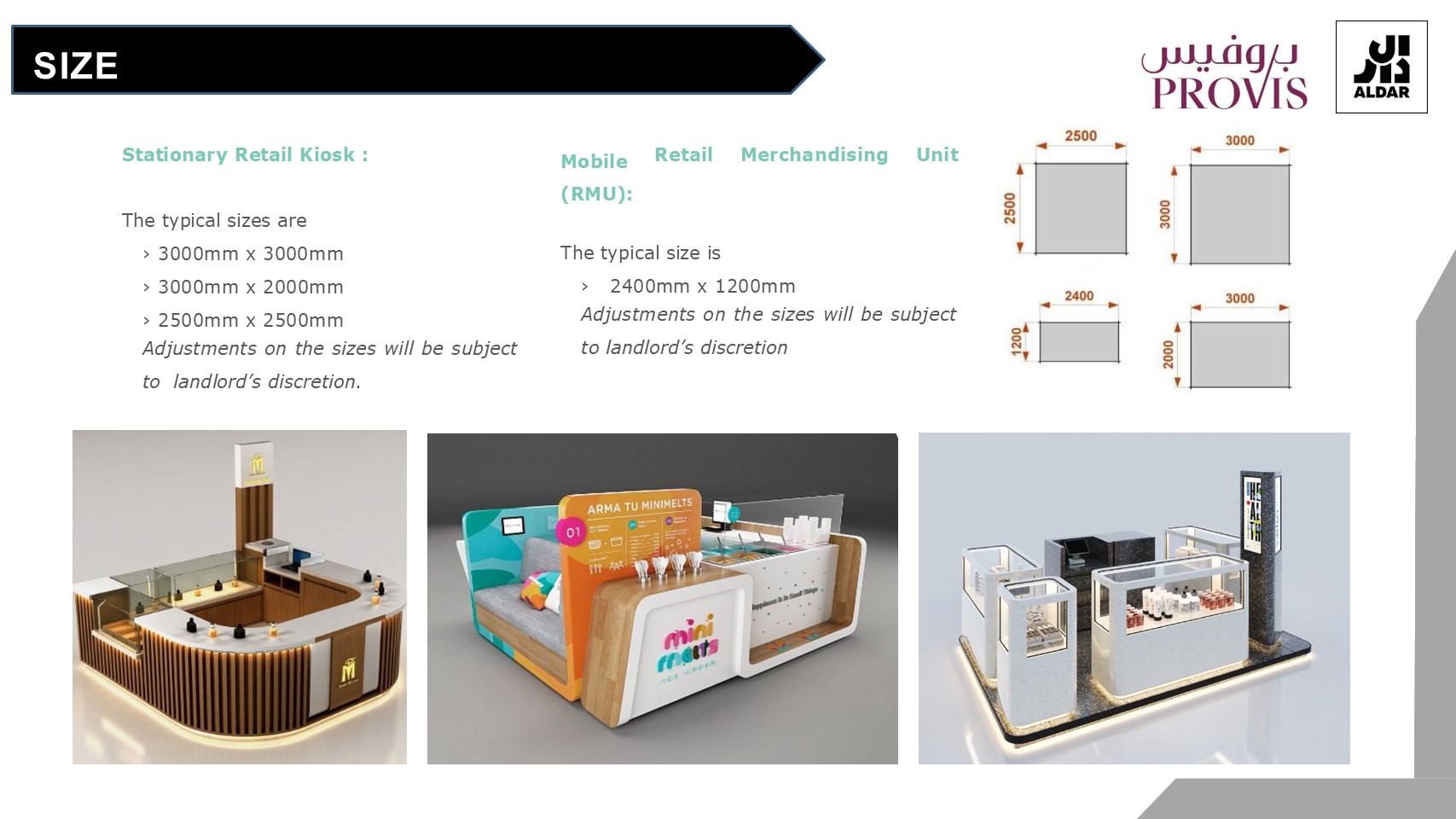

Sizing & Dimensions
♦Stationary Kiosks: 3m x 3m, 3m x 2m, or 2.5m x 2.5m
♦Mobile RMUs: 2.4m x 1.2m
♦Adjustments are subject to landlord approval

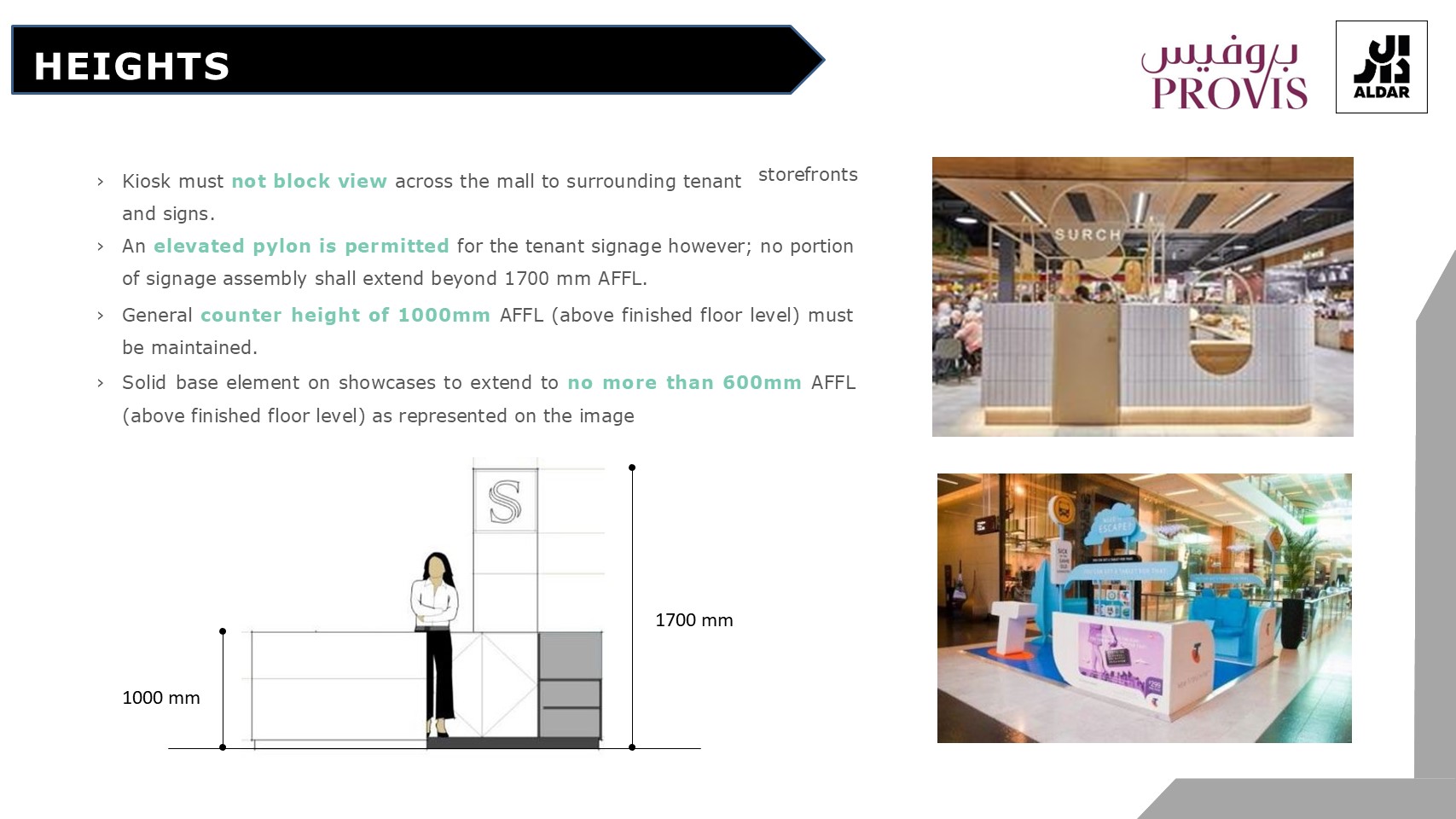

Heights
♦Counter height: 1000mm AFFL
♦Pylon height: max 1700mm AFFL
♦Solid base: max 600mm AFFL

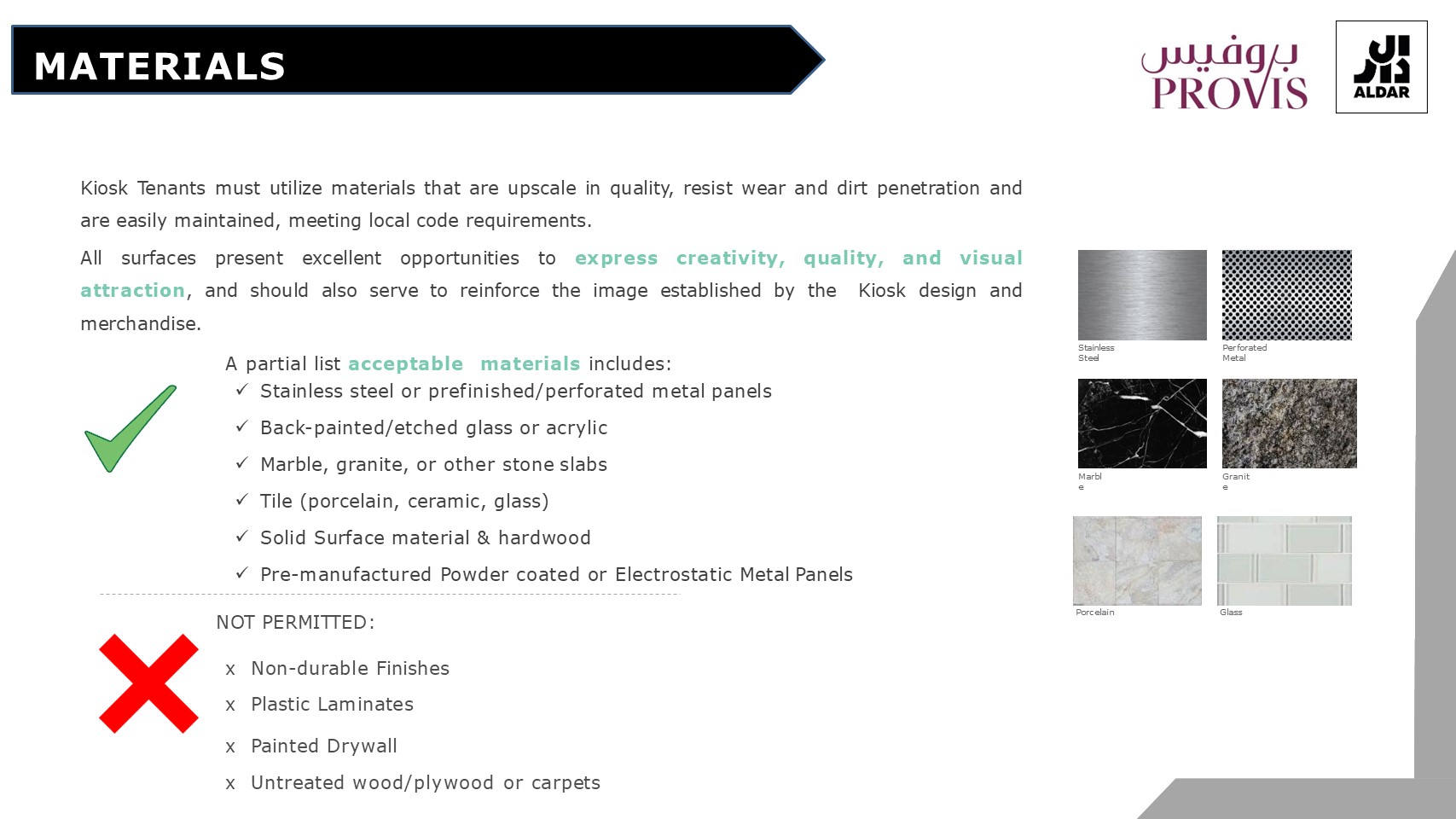

Materials & Finishes
♦80% neutral colors, 20% accent colors
♦Acceptable materials: stone, metal, glass, solid wood, tile
♦Prohibited: laminates, drywall, untreated wood, carpets

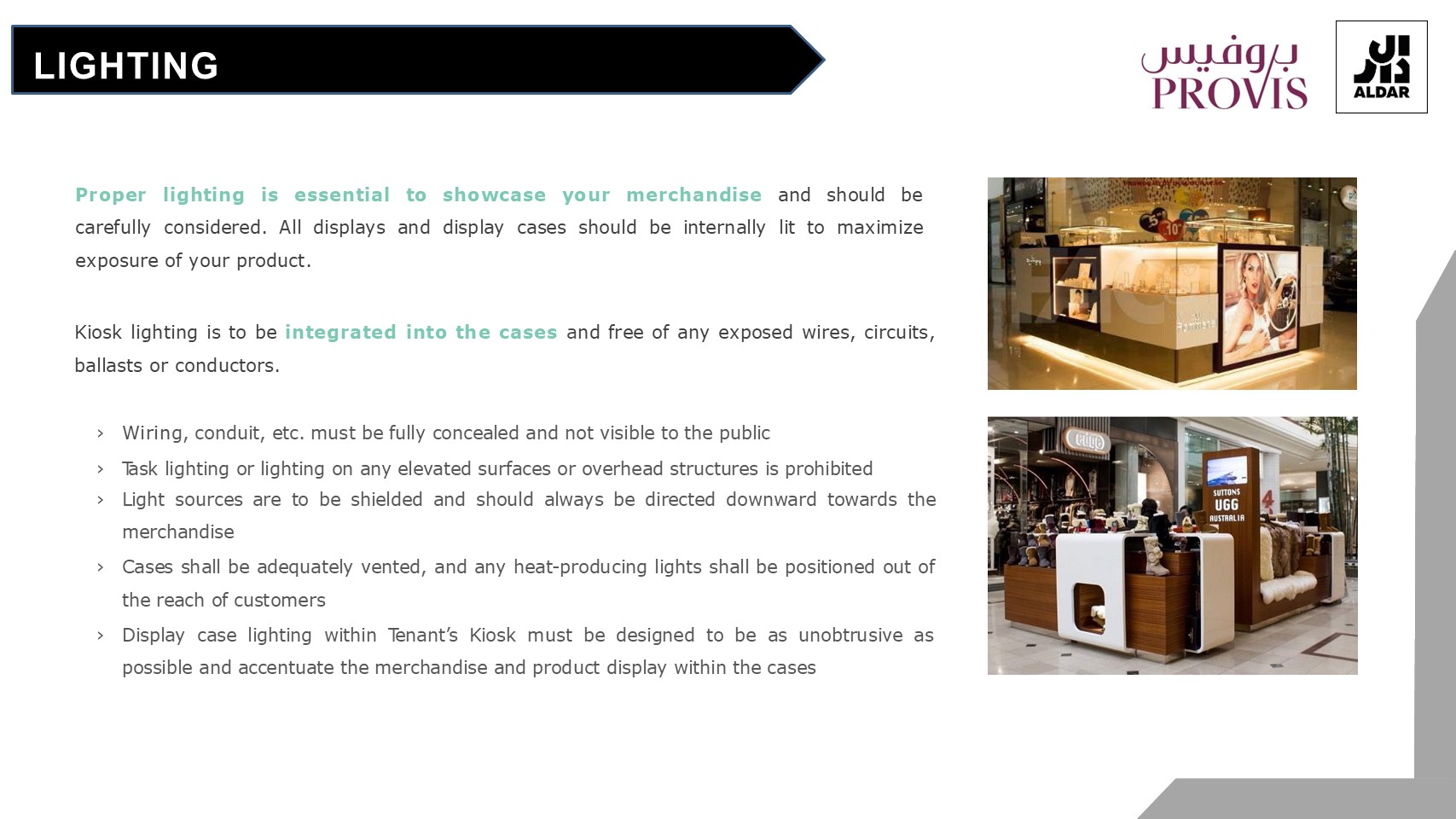

Lighting
♦All lighting must be LED, 4000K color temperature
♦No multicolor or exposed light sources
♦Cove lighting at skirting level is required

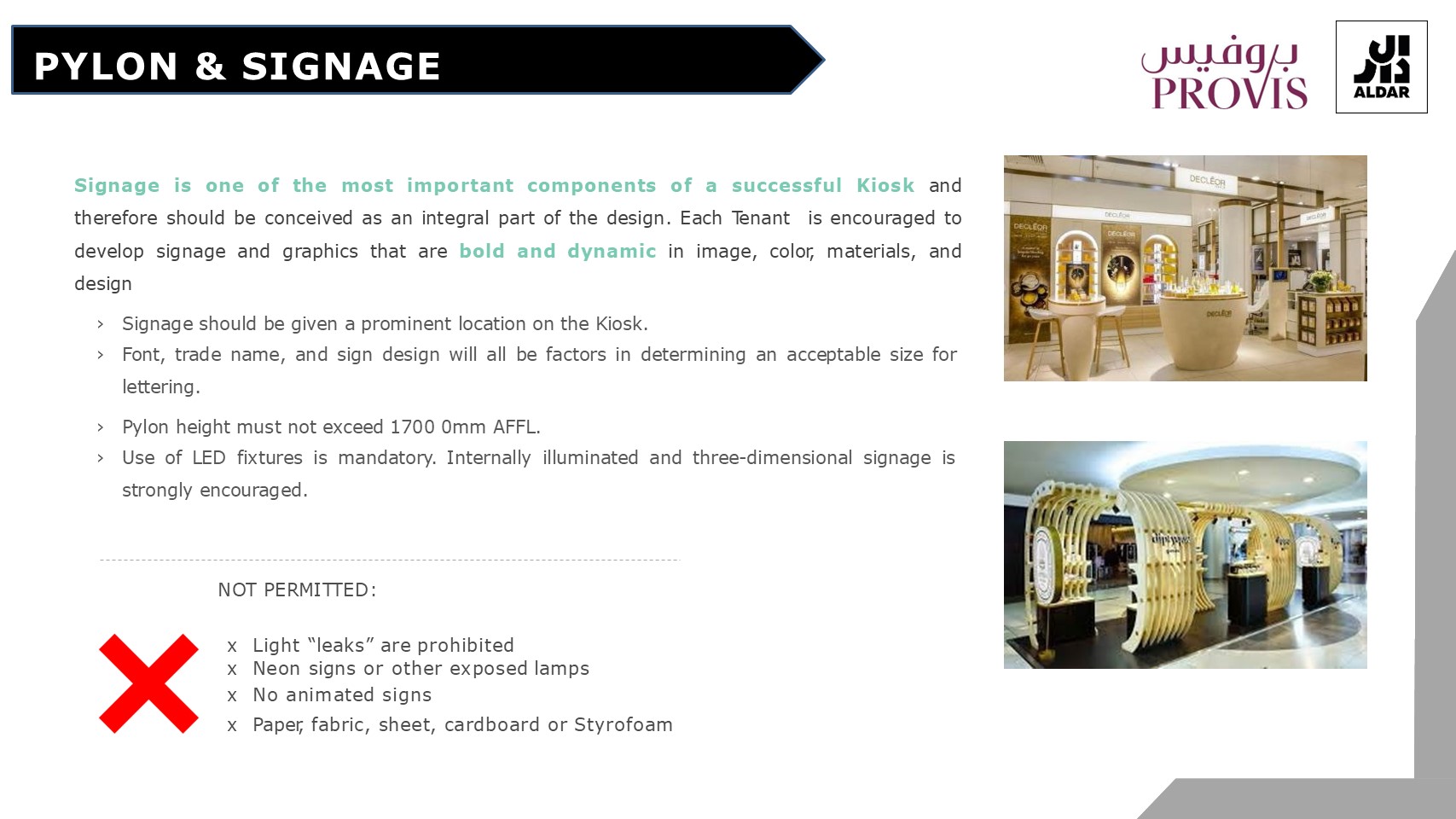

Signage & Pylon
♦Signage must be integrated into the kiosk design
♦Internal LED illumination is encouraged
♦No LED screens, neon, or temporary signs allowed
Kiosk Typologies
♦Wall Kiosks: Modular, self-supporting, no fixing to mall walls

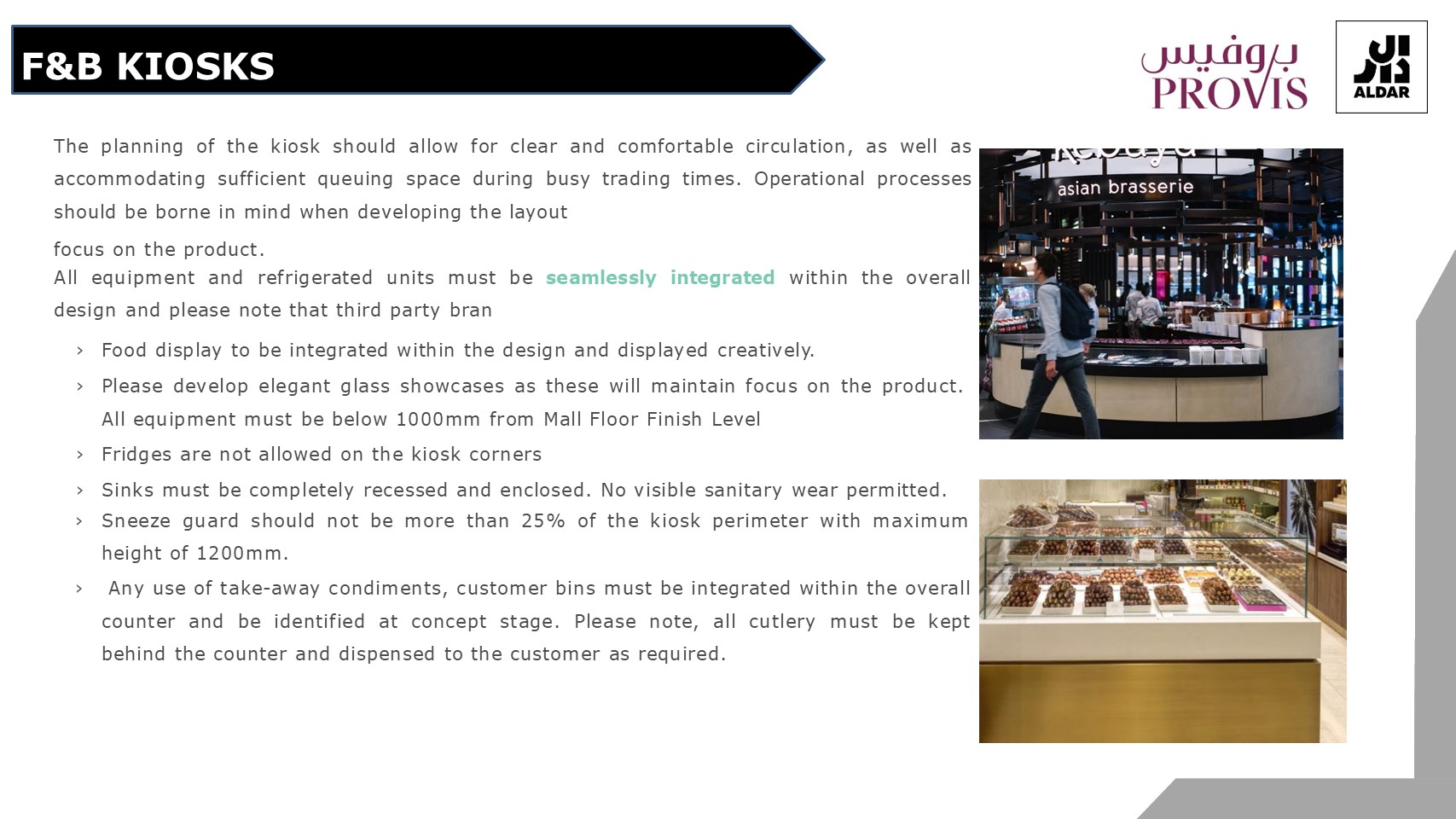

♦F&B Kiosks: Integrated equipment, sneeze guards, and sanitary compliance

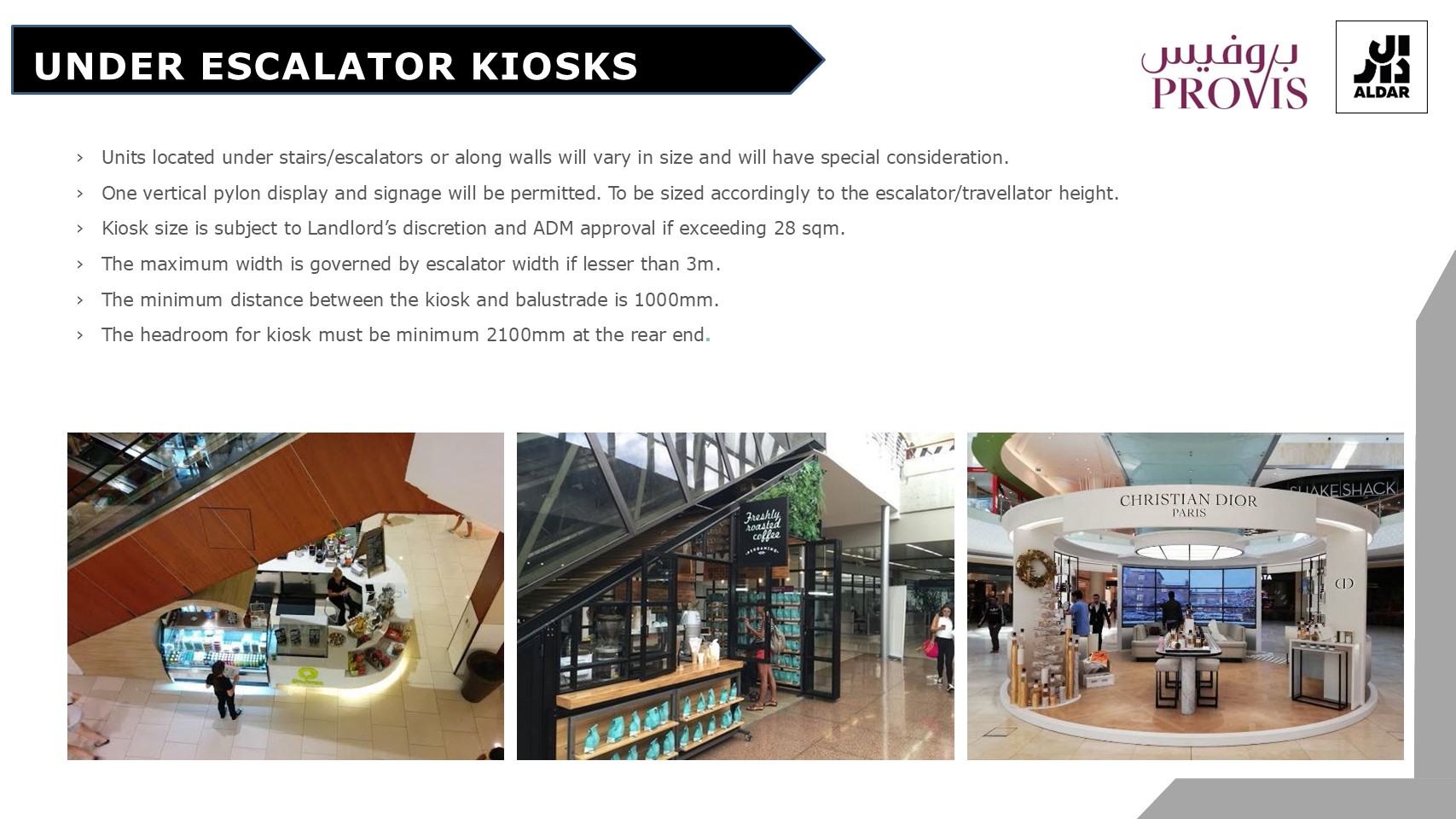

♦Under Escalator Kiosks: Special sizing and placement rules apply

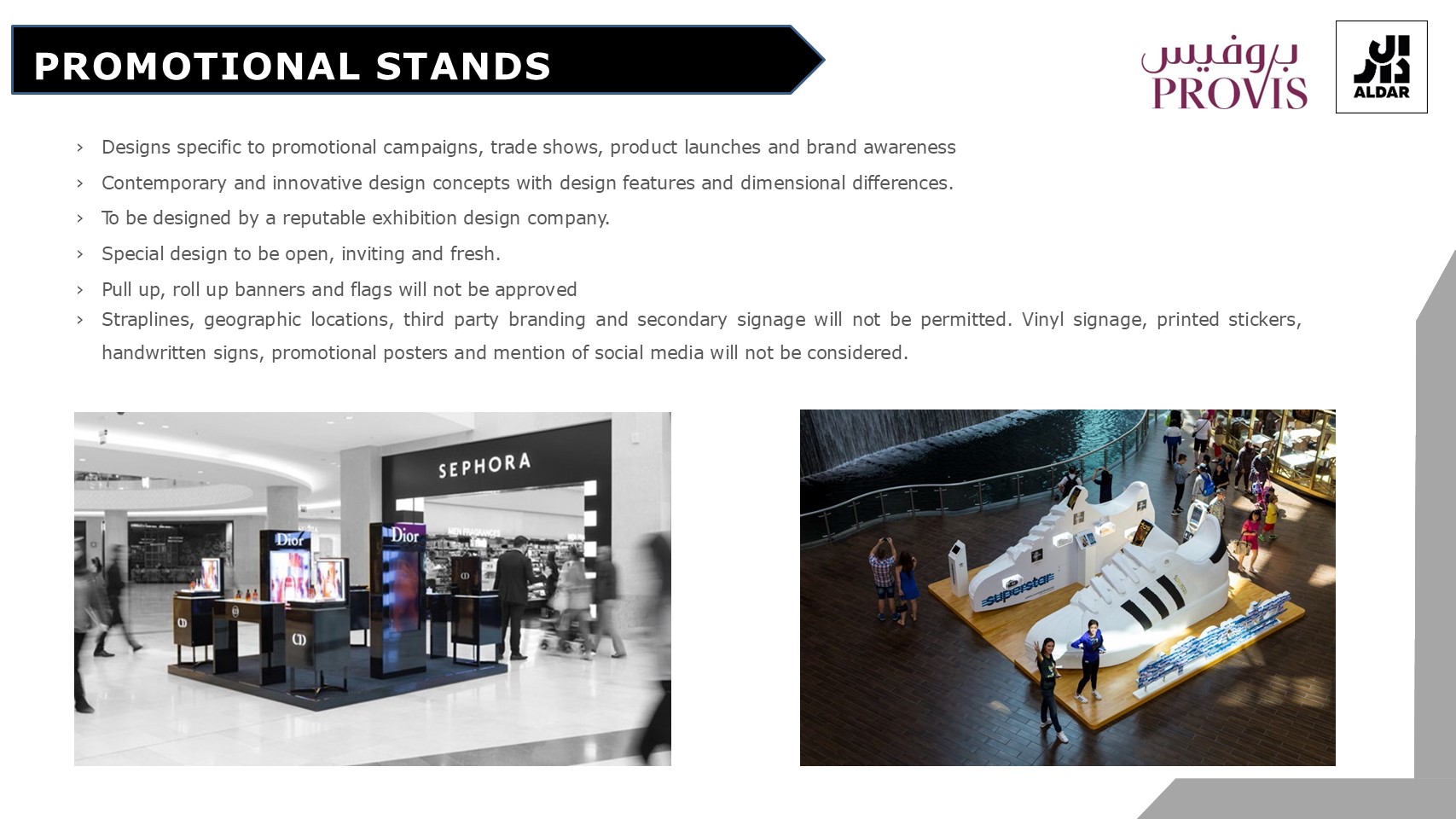

♦Promotional Stands: Temporary structures for brand launches and campaigns
Design Submission Process

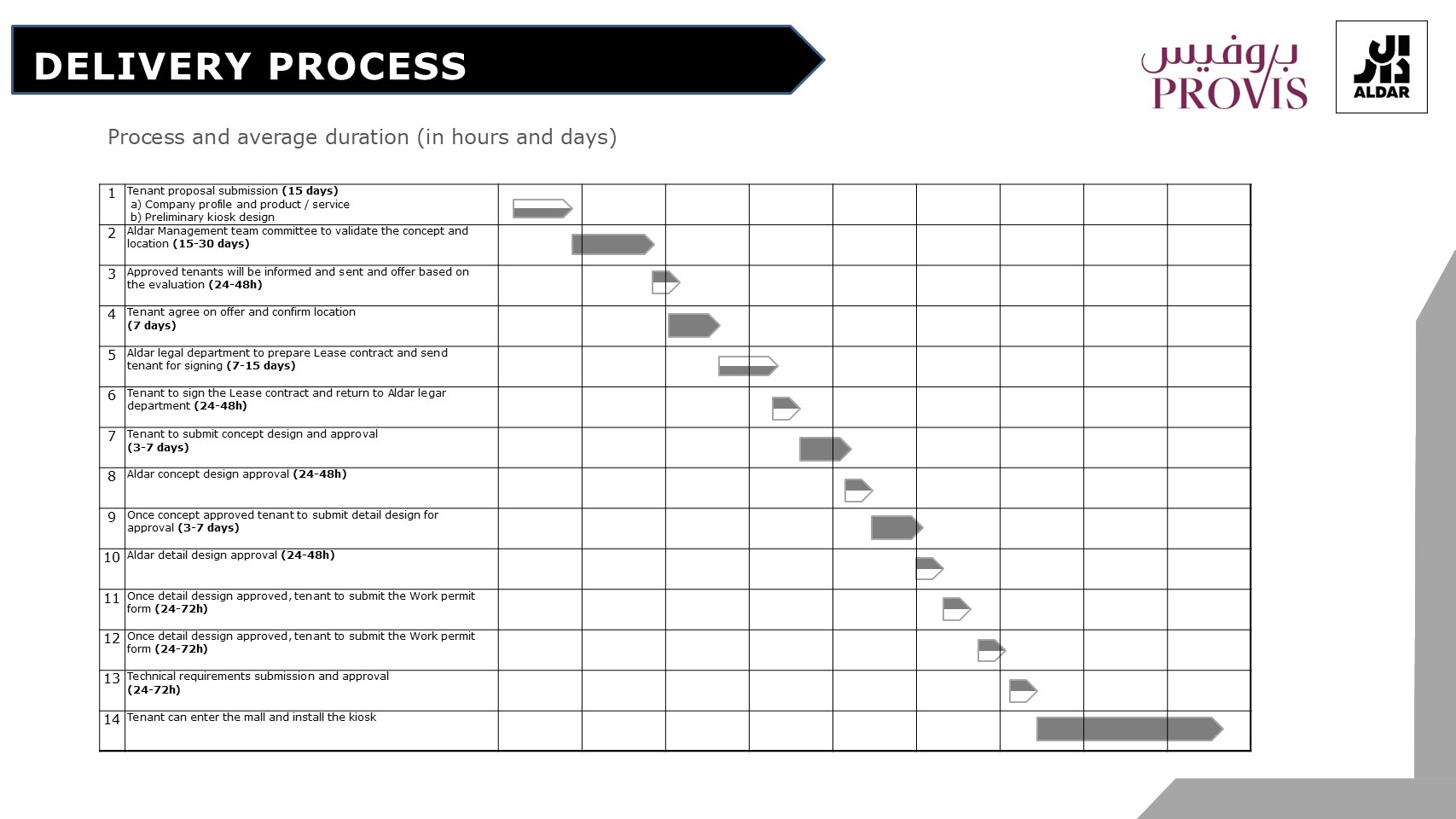

Step-by-Step Timeline
1.Tenant proposal submission (15 days)
2.Concept validation by mall management (15–30 days)
3.Lease agreement preparation and signing (7–15 days)
4.Concept design submission and approval (3–7 days)
5.Detailed design submission and approval (3–7 days)
6.Work permit and technical approval (1–3 days)
7.Installation during mall off-hours

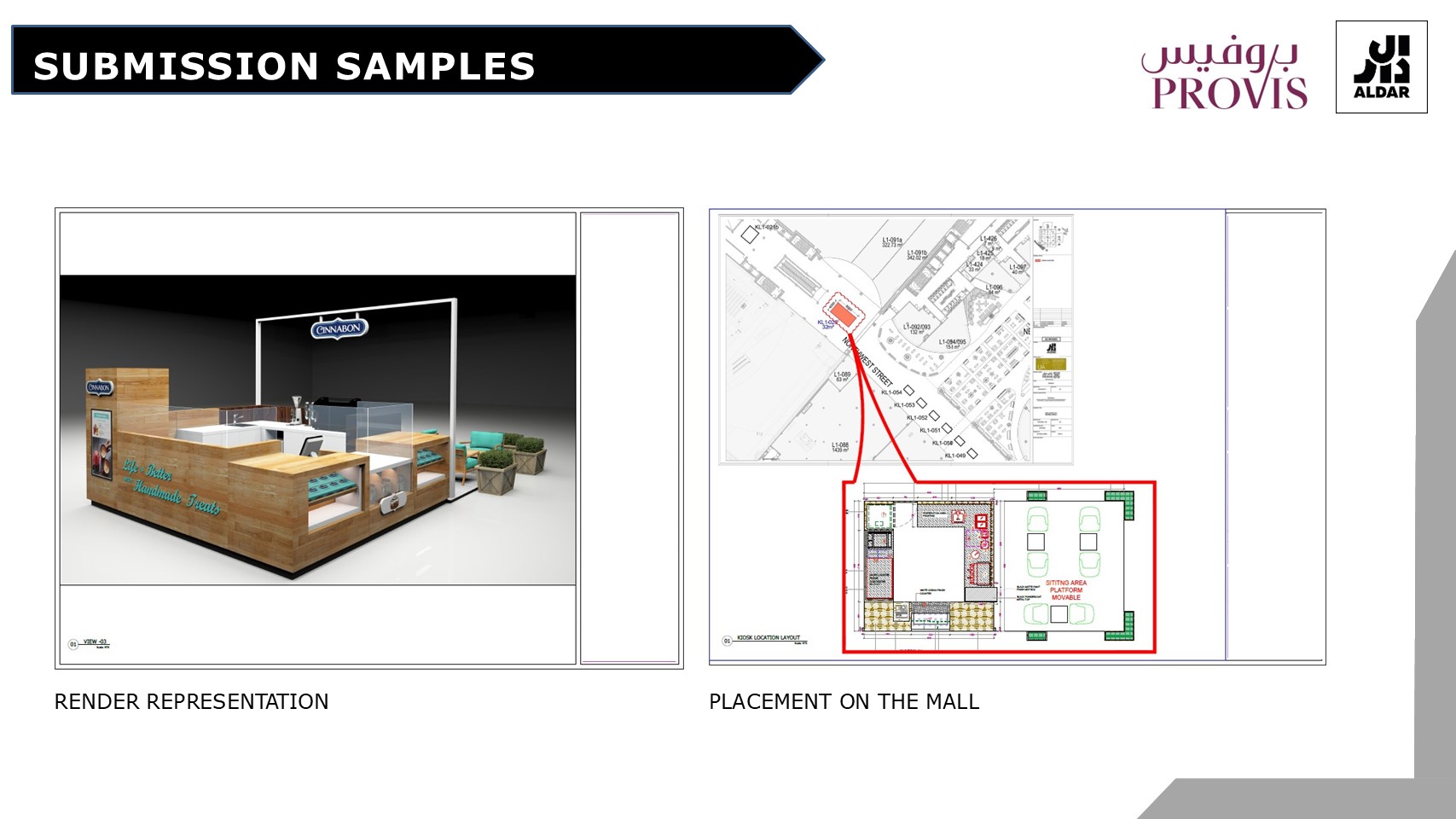

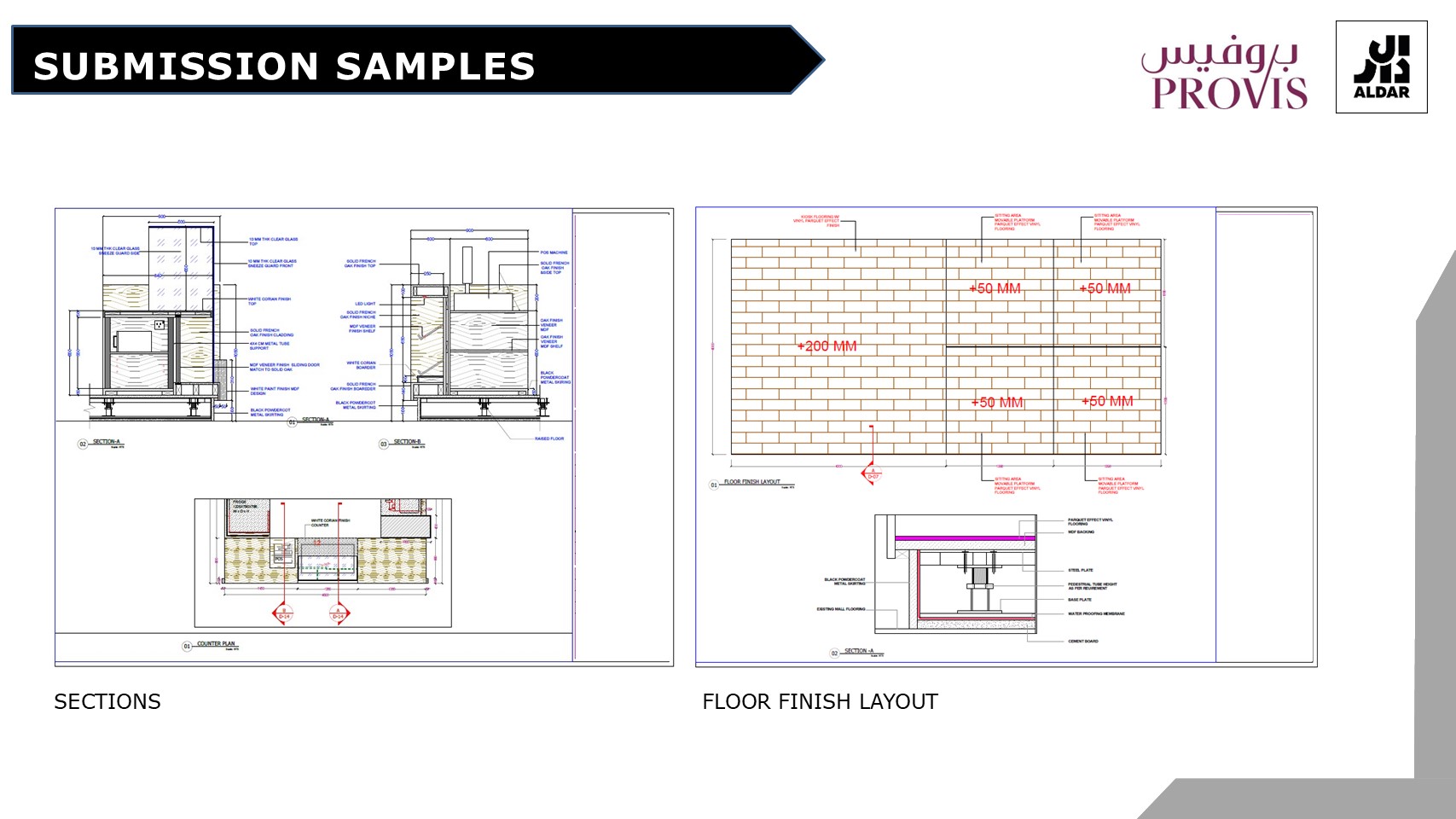

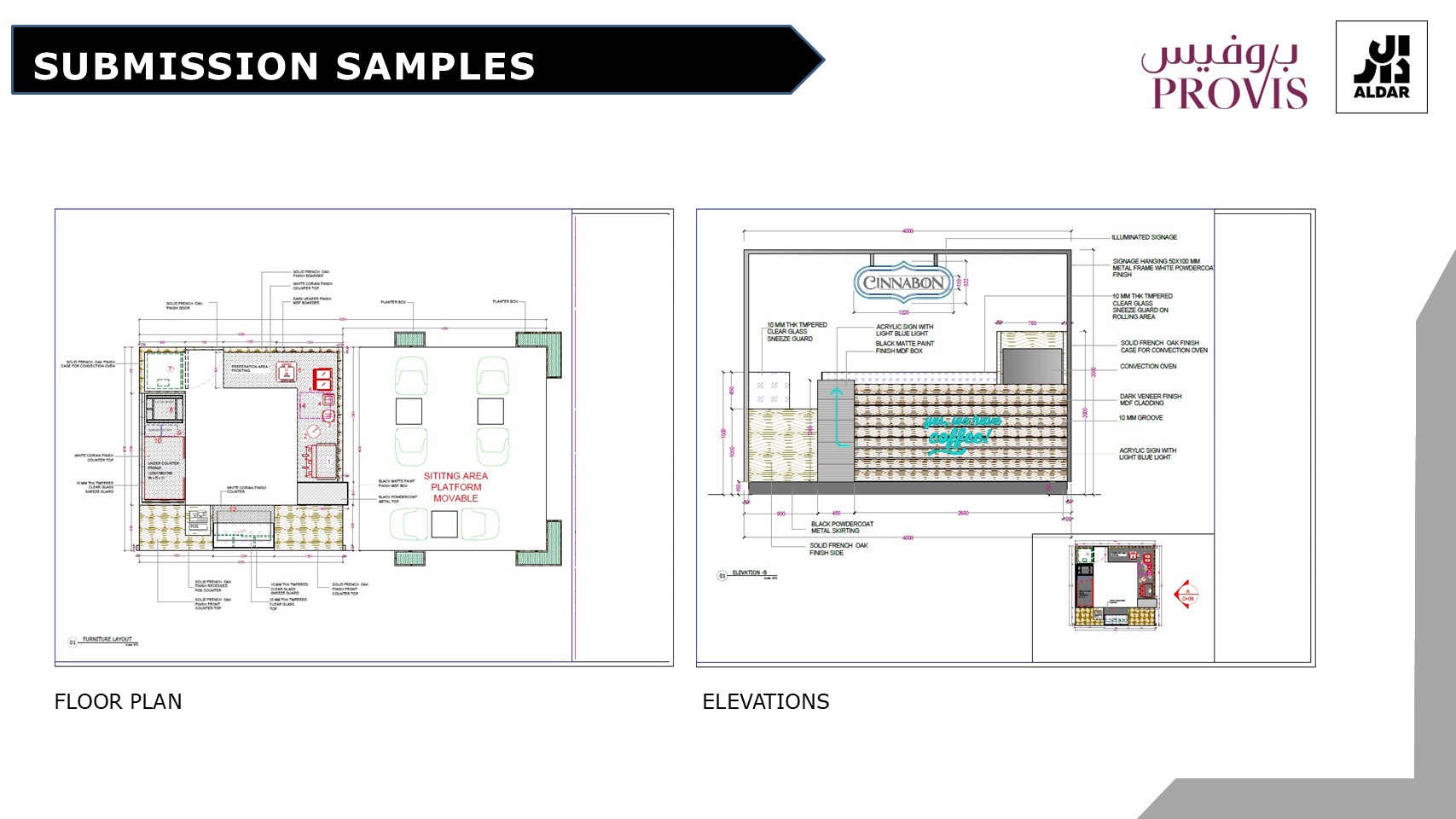

Required Documents
♦Colored renderings and site photos
♦Scaled floor plans, elevations, and sections
♦Material samples and signage details
♦MEP drawings for F&B kiosks

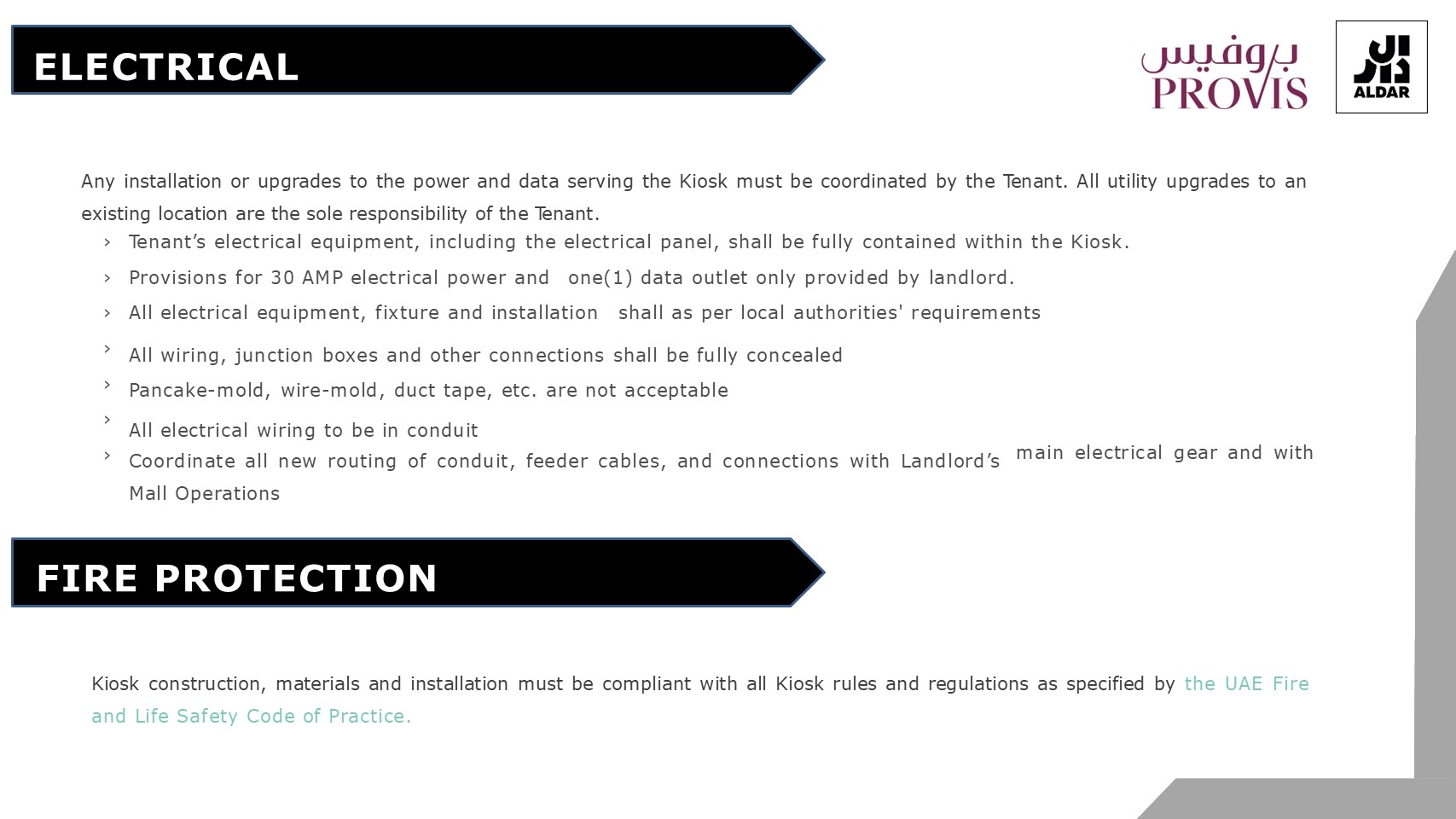

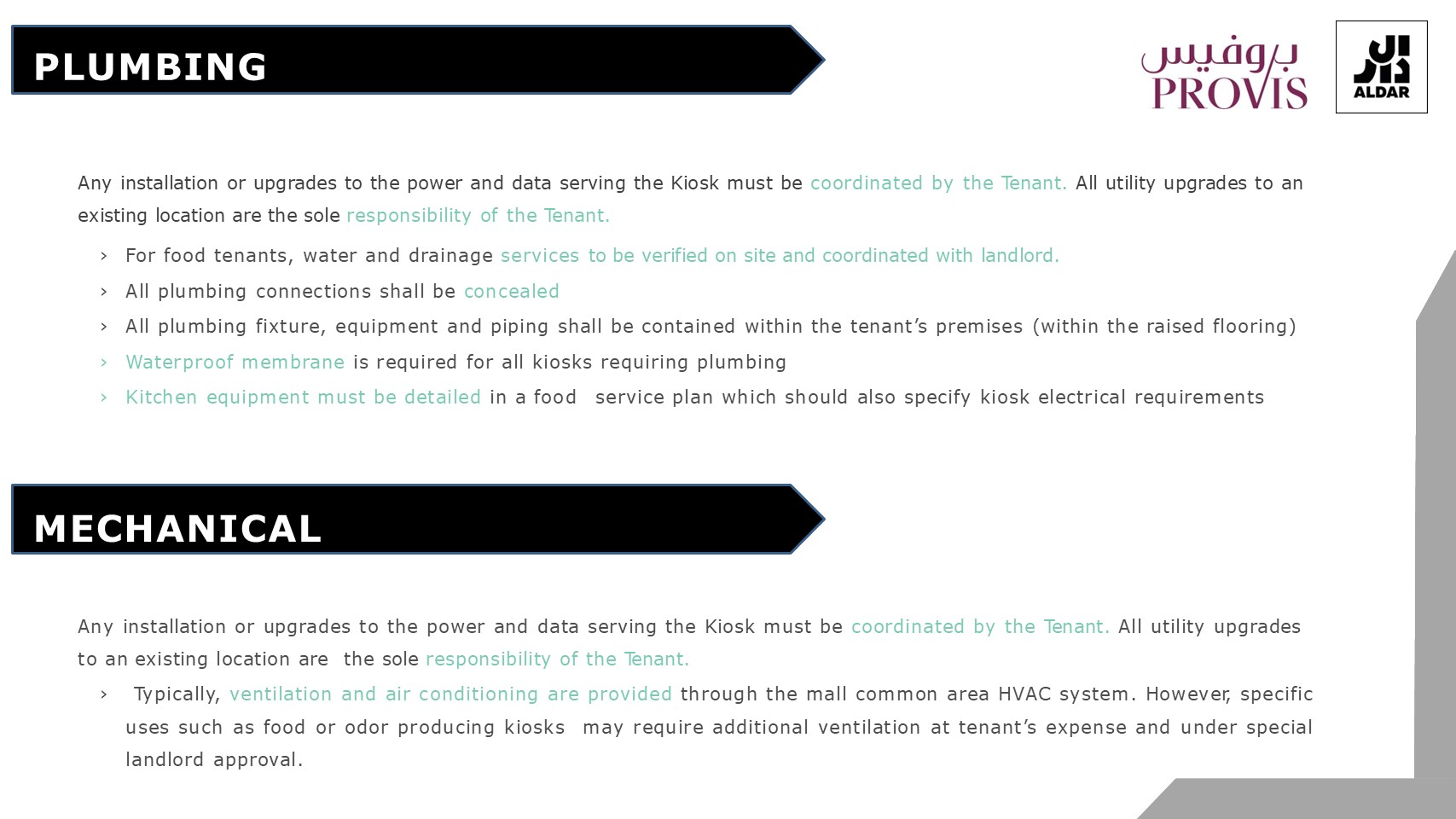

MEP Guidelines
♦Electrical: 30 AMP power and one data outlet provided
♦Plumbing: Required for F&B kiosks; waterproof membrane mandatory
♦Fire Protection: Compliance with UAE Fire and Life Safety Code
♦Mechanical: Additional ventilation may be required for food kiosks

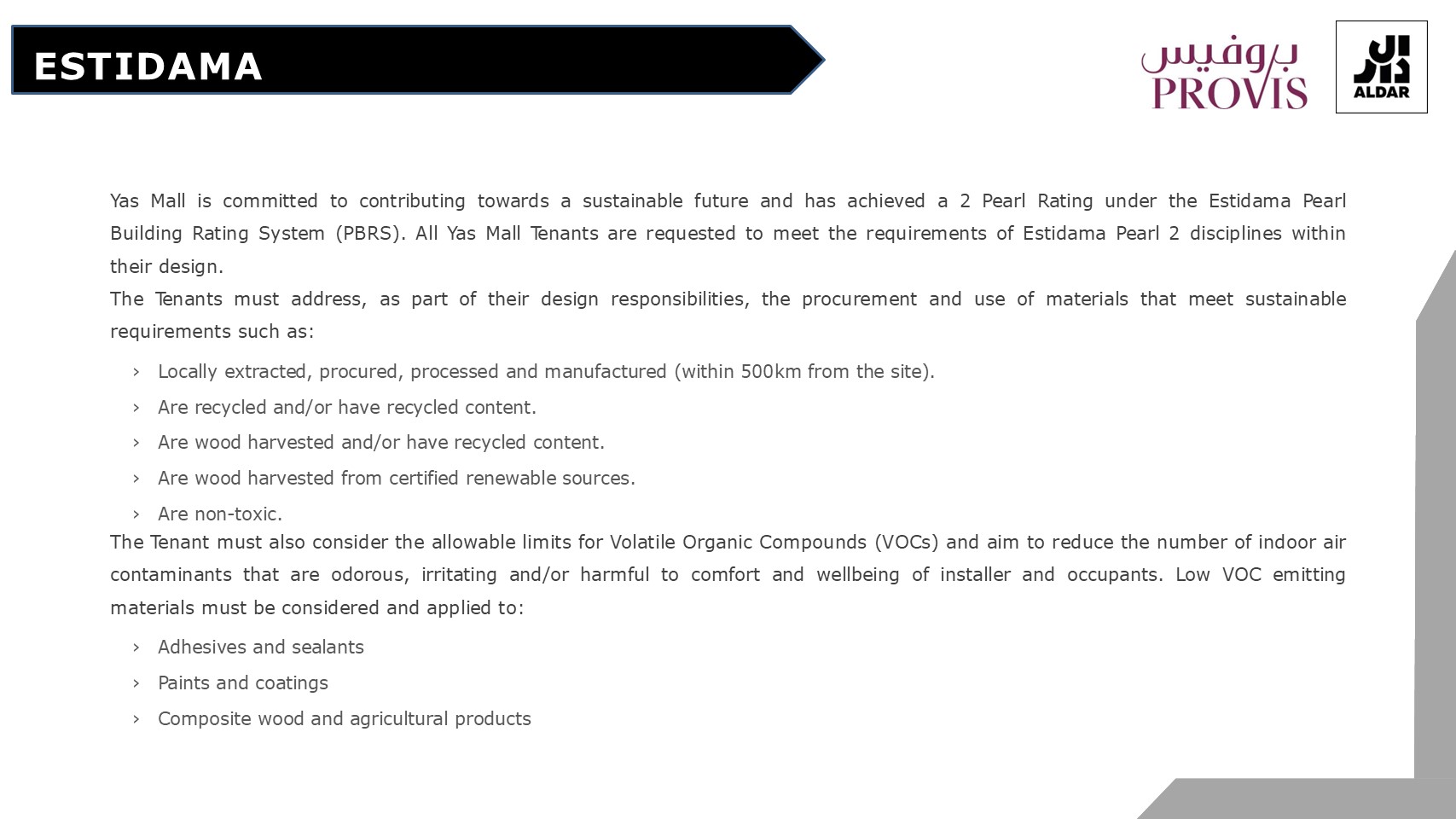

Sustainability & Estidama Compliance
Yas Mall is a 2 Pearl Estidama-rated building. Tenants are encouraged to use:
♦Locally sourced materials (within 500km)
♦Recycled or renewable materials
♦Low-VOC paints, adhesives, and coatings

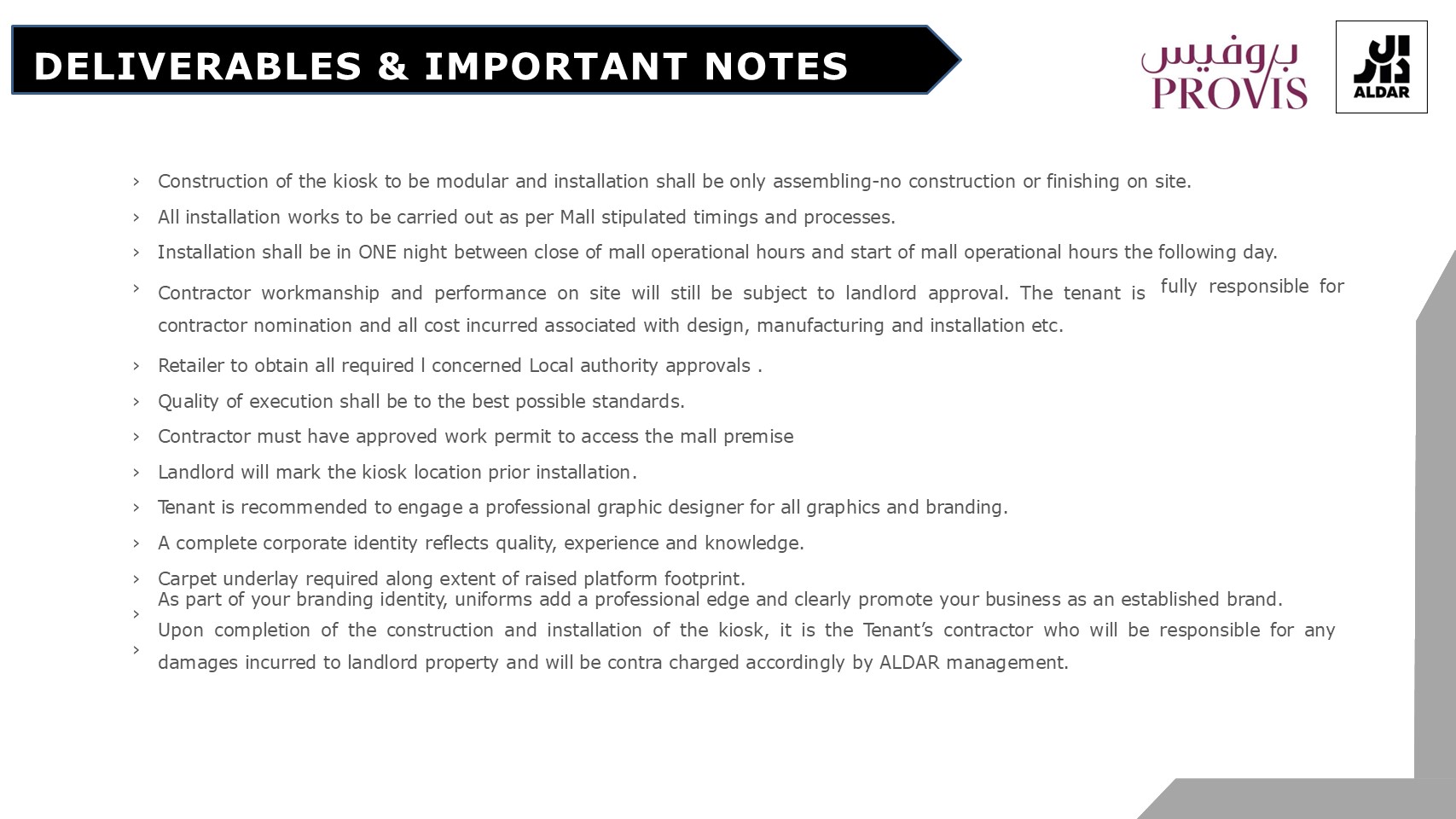

Final Notes for Success
♦Kiosks must be modular and installed overnight
♦Professional graphic design and branding are recommended
♦All contractors must have approved work permits
♦Tenants are responsible for any damages during installation
