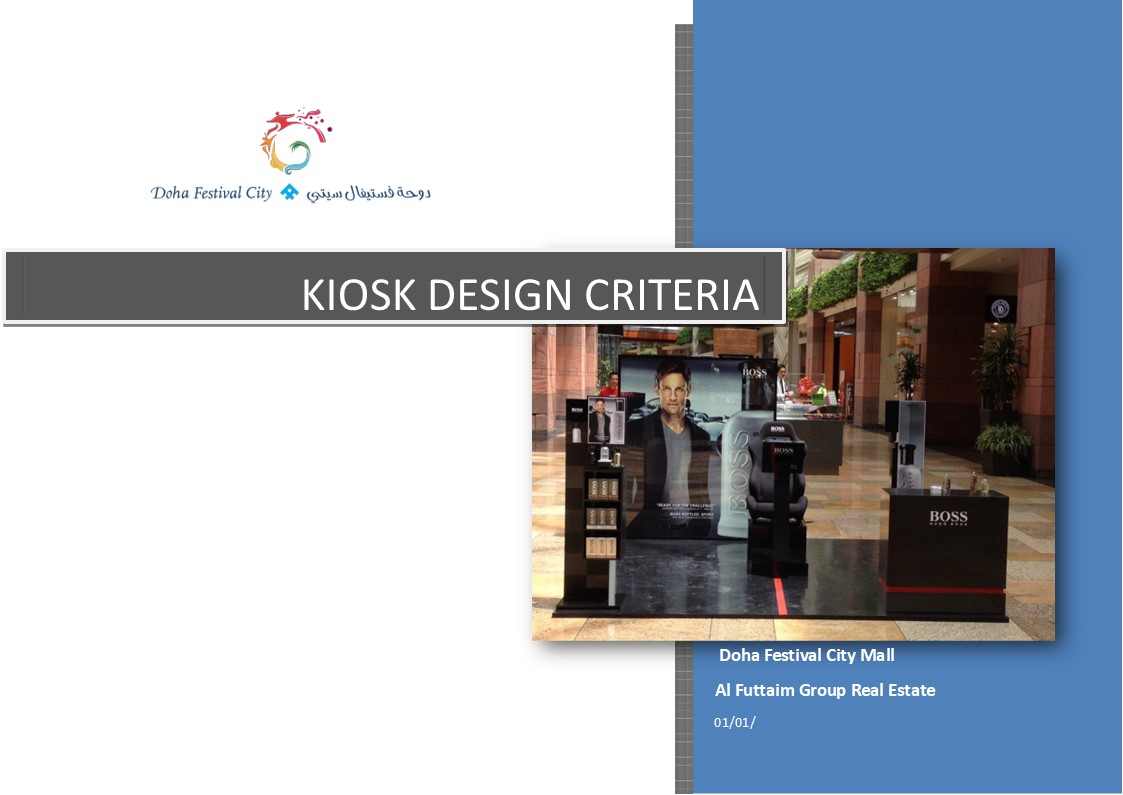

Doha Festival City Kiosk Design Criteria: Your Complete Compliance Guide

Ensuring your kiosk design meets the specific standards of a premier shopping destination like Doha Festival City is crucial for a smooth approval process and successful retail operation. This comprehensive guide details the official Kiosk Design Criteria, providing you with the essential knowledge to create a compliant, creative, and high-performing retail unit.

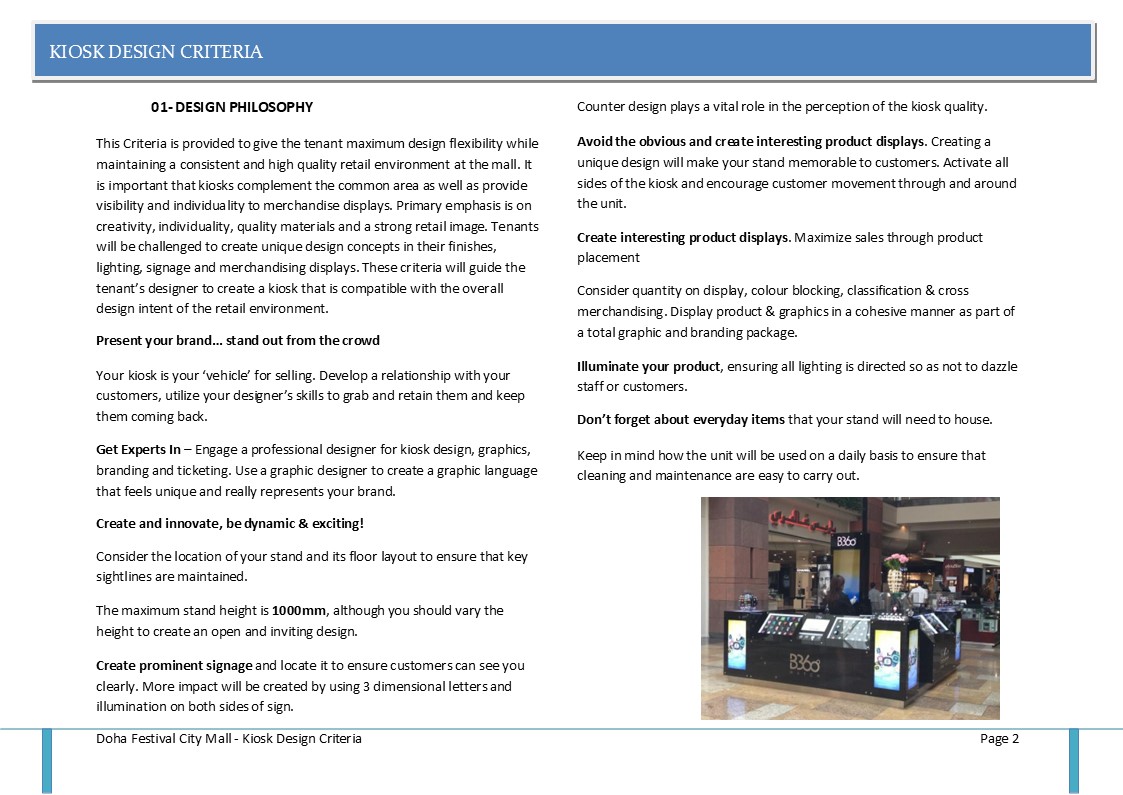

1. Design Philosophy

Doha Festival City aims to give tenants maximum design flexibility while maintaining a consistent, high-quality retail environment. The primary emphasis is on creativity, individuality, quality materials, and a strong retail image.

Key Design Principles:

• Your kiosk is your ‘vehicle’ for selling; use it to develop customer relationships.
• Engage a professional designerfor kiosk design, graphics, and branding.
• Create an open and inviting design by varying heights (max stand height is 1000mm).
• Use prominent, 3-dimensional illuminated signageon both sides.
• Activate all sides of the kiosk to encourage customer movement.
• Illuminate products effectively without dazzling staff or customers.
• Design for easy daily cleaning and maintenance.

2. Design Criteria

Size & Footprint

• Maximum total footprint:9 square meters.
• Typical Sizes:3m x 3m or 2m x 2m. Deviations require landlord approval.
• Nothing may extend past the designated leased area (includes tables, chairs, POS, signage).
• A 3m clear, unobstructed mall aislemust be maintained.

Kiosk Structure, Fixtures & Detailing

• Structure:Must be self-supporting and modular. No fixing to mall floor, wall, or ceiling.
• Fixtures:All equipment, POS systems, and cabling must be built-in and concealed.
• Closure:Lockable counter units are required. Fabric curtains/drapery are not permitted.
• Height:Must not block sightlines. No solid canopies. Signage pylon must not exceed 2100mm AFFL, with the bottom resting between 1500mm-1800mm. Max pylon width is 600mm.
• Counters/Showcases:

• Varying counter heights are encouraged. Max general counter height: 1000mm AFFL.
• Solid base on showcases: max 600mm AFFL.
• Storage must be concealed.
• Showcases must be internally lit and lockable.
• All glass cabinets must be framelesswith square edges and UV glue (no silicon).
  • Gate Access:Must be swing type, not swing into the mall, and be well-integrated into the design.
  • Flooring:
• Must conceal all cabling within a raised floor.
• Approved materials: Laminated MDF, engineered timber, stone.
• Ramped edging is requiredon all sides to prevent trip hazards.
• A toe-kick(75mm H, 50mm D) with warm white LED illumination over an acrylic diffuser and brushed stainless steel finish is mandatory.

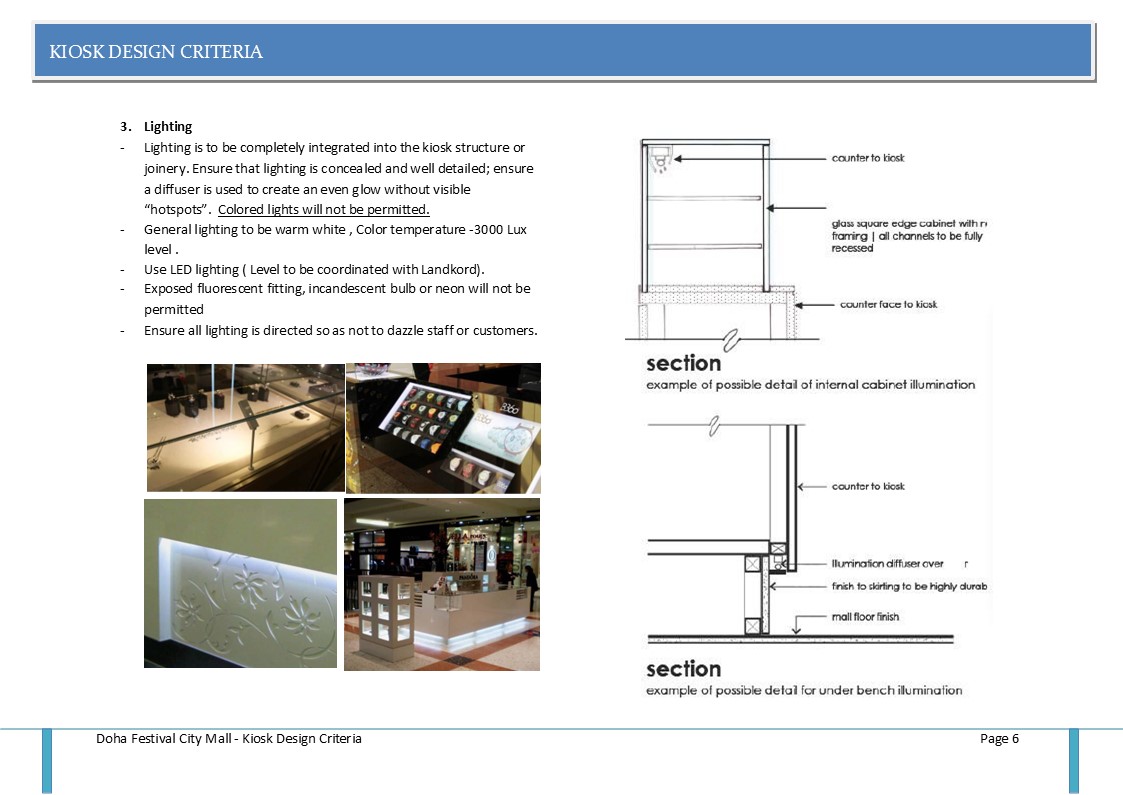

Lighting

• Must be completely integrated and concealedwithin the kiosk joinery.
• Use diffusersto avoid “hotspots.” Colored lights are prohibited.
• General Lighting:Warm white, 3000K color temperature.
• Type:LED lighting is required.
• Not Permitted:Exposed fluorescent fittings, incandescent bulbs, or neon.

3. Signage, Branding & Graphics

Signage

• Primary signage must be on a signage pylon.
• Must be LED illuminated with 3-dimensional letters/logo(18-20mm projection).
• Max letter height:
• Not Permitted:Flush face light boxes, “flex face” signs, temporary signage, third-party ads, paper/cardboard, Styrofoam, stickers, or decals.
• Secondary Signage:Can be integrated into counter design on two sides max (80mm letter height).
• Arabic translationis required, subject to DED approval.

Branding/Graphics

• Subtle graphic applications behind glass are permitted, with concealed framing.
• Frameless magnetic systems are preferred.
• All content requires landlord approval.
• LCD monitorsare not encouraged and are subject to landlord discretion.

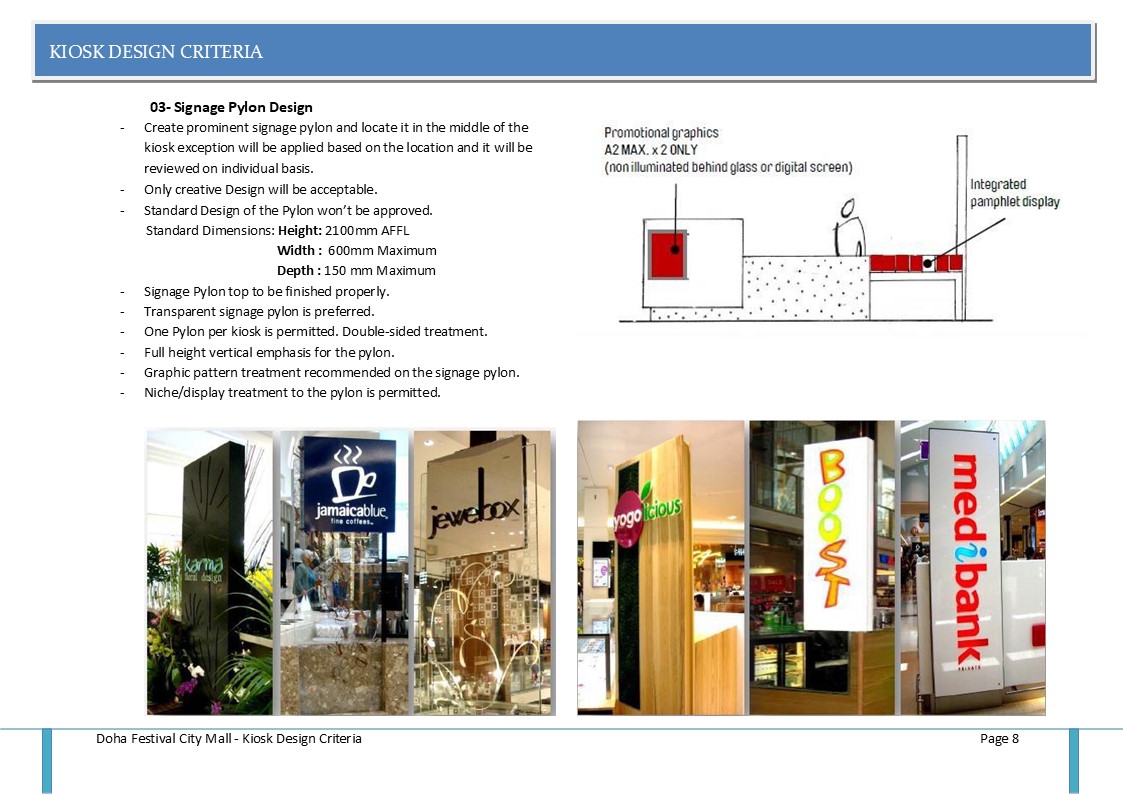

4. Pylon Signage Design

• Location is typically in the middle of the kiosk.
• Only creative designs will be accepted; standard designs will be rejected.
• Standard Dimensions:

• Height: 2100mm AFFL
• Width: 600mm Max
• Depth: 150mm Max
  • Pylon top must be properly finished.
  • Transparent pylons are preferred.
  • One pylon per kiosk is permitted (double-sided treatment).
  • Graphic patterns and niche/display treatments are recommended.

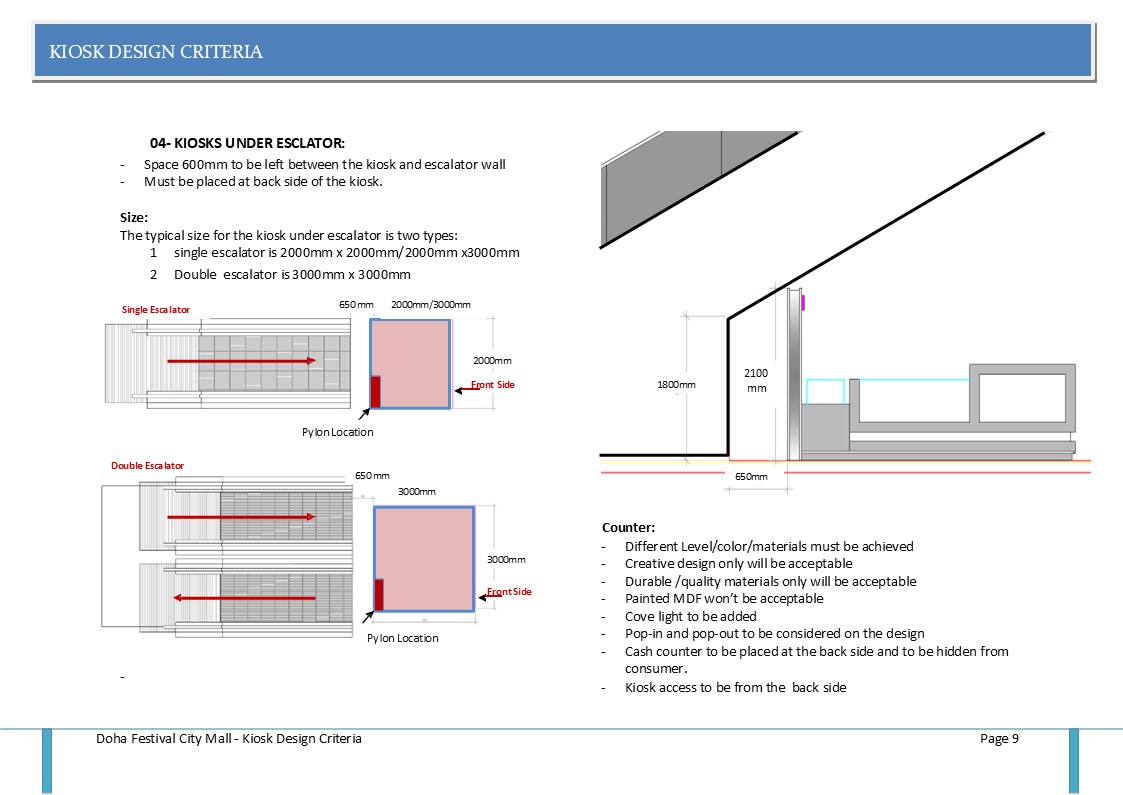

5. Kiosks Under Escalator

• A 600mm spacemust be left between the kiosk and the escalator wall.
• Typical Sizes:

• Single Escalator: 2m x 2m or 2m x 3m
• Double Escalator: 3m x 3m
  • Counters must use different levels, colors, and materials. Painted MDF is not acceptable.
  • Cove lighting must be added.
  • Cash counter and kiosk access must be placed at the back side, hidden from consumers.
  • Pylon design has two options, both requiring creative treatment and landlord approval.

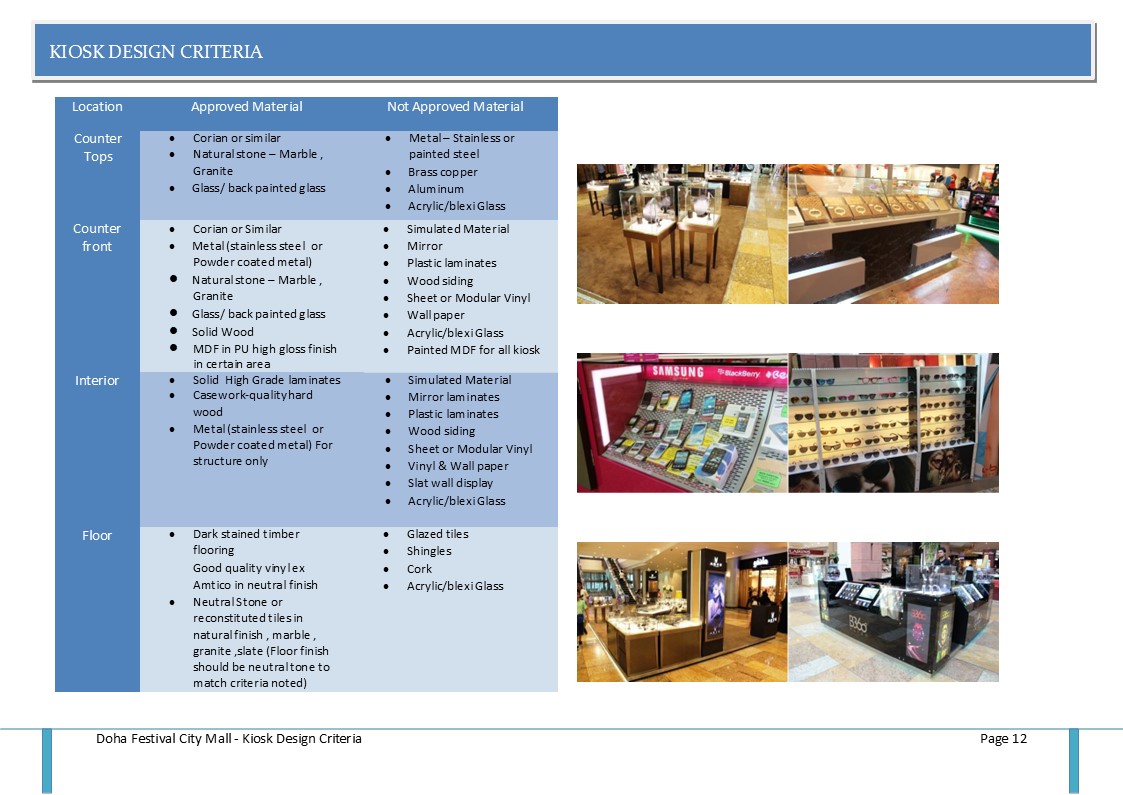

6. Approved Materials & Finishes

Tenants must use upscale, durable, and high-quality materials. A sample board is required for submission.

Location	Approved Materials	Prohibited Materials
Counter Tops	Corian, natural stone (marble, granite), glass/back-painted glass	Plastic laminates, slatwall, mirror laminate, shingles, carpet, simulated materials, vinyl, glazed tiles
Counter Fronts	Corian, metal (stainless steel, powder-coated), natural stone, glass, solid wood, MDF in PU high-gloss finish
Interiors	Solid high-grade laminates, quality hardwood, metal (for structure only)
Flooring	Dark stained timber, high-quality vinyl (e.g., Amtico), natural/reconstituted stone tiles in neutral tones

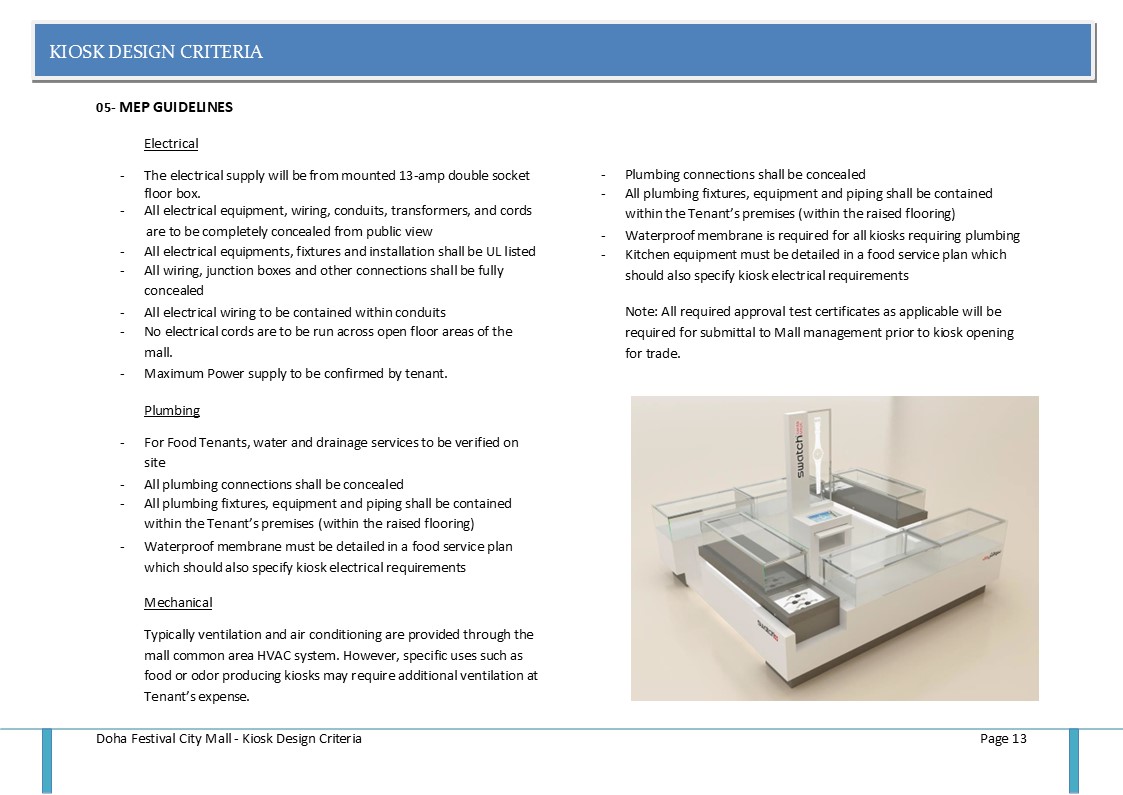

7. MEP Guidelines

Electrical

• Supply from a 13-amp double socket floor box.
• All equipment, wiring, conduits, and cords must be completely concealed.
• Equipment must be UL listed.
• No cords across open mall floors.

Plumbing (for Food Tenants)

• All connections and piping must be concealed within the raised flooring.
• A waterproof membraneis required.

Mechanical

• Mall HVAC is typically sufficient. Odor-producing kiosks may require additional ventilation at the tenant’s expense.
• All required test certificates must be submitted before opening.

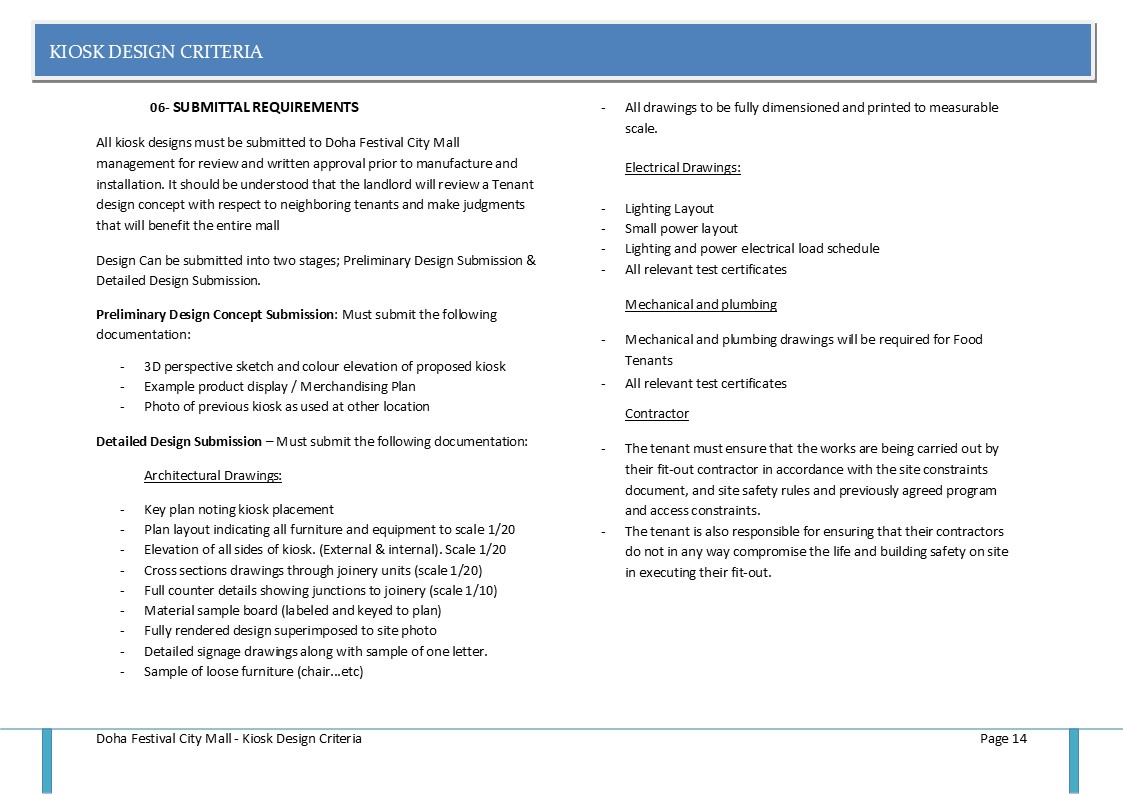

8. Submittal Requirements & Opening Process

Design Submissions

1. Preliminary Design Concept:

• 3D perspective sketch and color elevation
• Example merchandising plan
• Photo of previous kiosk (if applicable)
  2. Detailed Design Submission:
• Architectural drawings (plans, elevations, sections, material board, signage details)
• Electrical drawings (layout, load schedule)
• MEP drawings for Food Tenants
• All contractor and statutory compliance documentation.

Kiosk Opening Process & Timeline

The average process time from concept to trade is approximately 8 weeks.

1. Concept Development (2 weeks)
2. Design Submission & Review (1 week)
3. Design Approval (3 days)
4. Build/Off-Site Fabrication (4 weeks)
5. Overnight Installation & Opening

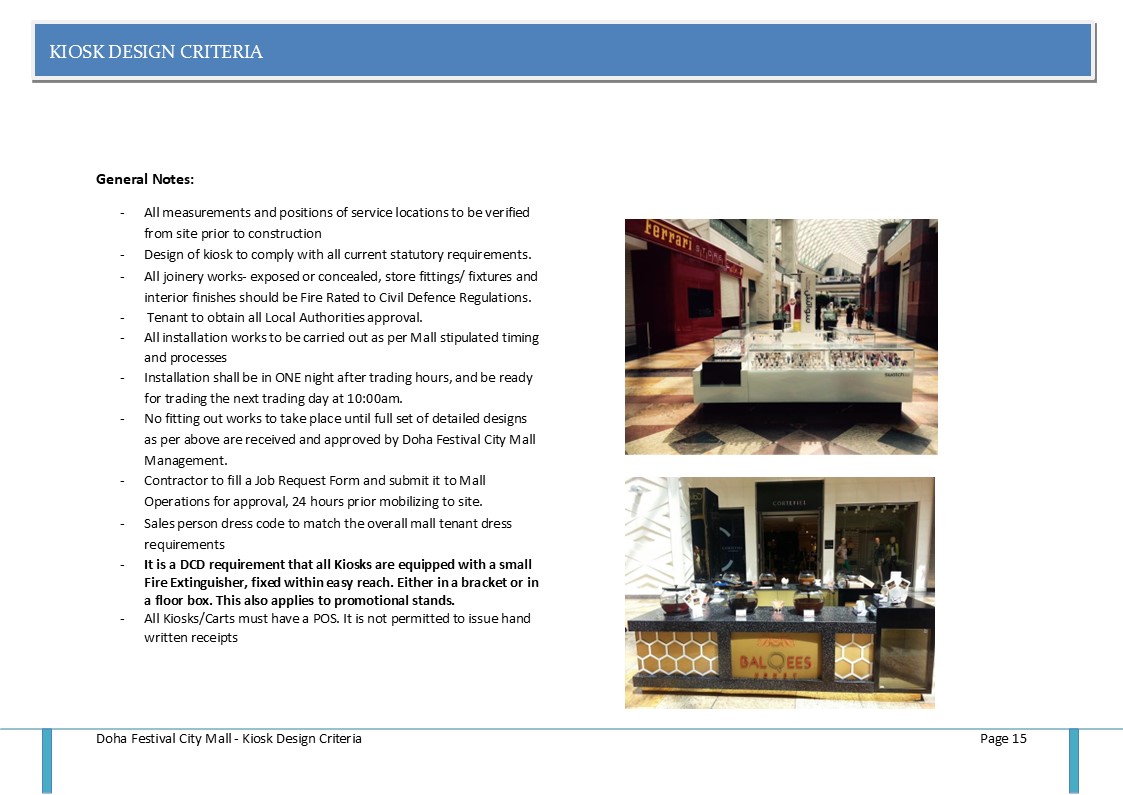

General Notes:

• Installation must occur in ONE nightafter trading hours.
• A fire extinguisheris mandatory for all kiosks.
• A POS systemis required; handwritten receipts are not permitted.
